CS Pipe Flanges Trader, ASTM A694 Socket weld Flanges Manufacturers in Mumbai, Slip On Ring Type Joint Flanges, Competitive Price of CS Slip on Flange,Ready Stock of Slip On Flange, Slip On SWRF Flanges, Slip On Ring Type Joint Flanges, Slip On Industrial Flanges, Largest Stockholder of CS Flanges in Mumbai, India.
Slip On Spectacle Blind Flanges Supplier in Mumbai, ANSI B16.5 Slip On Blind Flanges, Slip On Long Ring Type Joint Flanges, ASME SA694 Ring Type Joint Flanges, Ring Type Joint Flanges Stockist, Slip On Ring Type Joint Flange, Buy CS Ring Type Joint Flanges,Carbon Ring Type Joint Flanges Dealer, Slip On Ring Type Joint Flanges, Slip On Ring Type Joint Flanges Wholesaler, Slip On SORF Flanges, India.

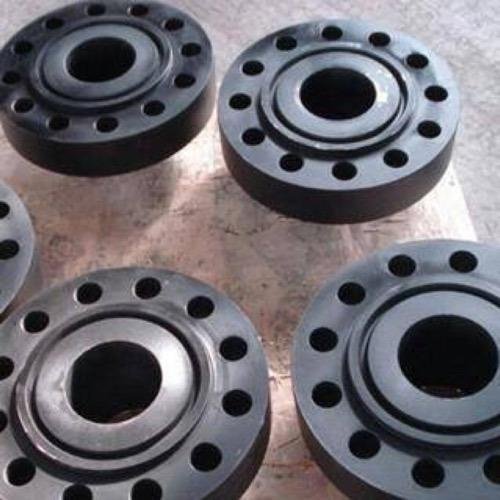

| Specifications | : | ASME B16.5 Ring Type Joint Flanges |
| Size | : | 1/2"NB TO 24"NB IN |
| Flange Face Type | : | Ring Type Jointe Face (FF), Raised Face (RF), Ring Type Joint (Ring Type Joint) |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Stainless Steel
- Stainless Steel 304 Ring Type Joint Flanges
- SS 304L Raised Face Ring Type Joint Flanges
- UNS S30400 Ring Type Joint Flanges
High Nickel
- Inconel 600, 601 Raised Face Ring Type Joint Flanges
- Nickel Alloy 200 Ring Type Joint Flanges
- Titanium Grade 2 Ring Type Joint Flanges
Carbon Steel
- UNS K03504 Ring Type Joint Flanges
- LF3 Ring Type Joint Flanges
- ASME B16.47 Carbon Steel Ring Type Joint Flanges
| Size in Inches | Size in Millimeter | Outer Diameter (O.D.) | Thickness Of Flanges | Hub Outside Daimeter | Weld Neck Outside Daimeter | Length Of Welding Neck | RTJ RF Diameter | Height Of RTJ RF | PCD | RTJ Pitch Diameter | RTJ Depth | RTJ Width | Bore |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 90 | 9.6 | 30 | 21.3 | 46 | N/A | N/A | 60.3 | N/A | N/A | N/A | |
| 3/4 | 20 | 100 | 11.2 | 38 | 26.7 | 51 | N/A | N/A | 69.9 | N/A | N/A | N/A | |
| 1 | 25 | 110 | 12.7 | 49 | 33.4 | 54 | 63.5 | 6.35 | 79.4 | 47.63 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 115 | 14.3 | 59 | 42.2 | 56 | 73 | 6.35 | 88.9 | 57.15 | 6.35 | 8.74 | |
| 1 1/2 | 40 | 125 | 15.9 | 65 | 48.3 | 60 | 82.5 | 6.35 | 98.4 | 65.07 | 6.35 | 8.74 | |
| 2 | 50 | 150 | 17.5 | 78 | 60.3 | 62 | 102 | 6.35 | 120.7 | 82.55 | 6.35 | 8.74 | |
| 2 1/2 | 65 | 180 | 20.7 | 90 | 73 | 68 | 121 | 6.35 | 139.7 | 101.6 | 6.35 | 8.74 | |
| 3 | 80 | 190 | 22.3 | 108 | 88.9 | 68 | 133 | 6.35 | 152.4 | 114.3 | 6.35 | 8.74 | |
| 3 1/2 | 90 | 215 | 22.3 | 122 | 101.6 | 70 | 154 | 6.35 | 177.8 | 131.78 | 6.35 | 8.74 | |
| 4 | 100 | 230 | 22.3 | 135 | 114.3 | 75 | 171 | 6.35 | 190.5 | 149.23 | 6.35 | 8.74 | |
| 5 | 125 | 255 | 22.3 | 164 | 141.3 | 87 | 194 | 6.35 | 215.9 | 171.45 | 6.35 | 8.74 | |
| 6 | 150 | 280 | 23.9 | 192 | 168.3 | 87 | 219 | 6.35 | 241.3 | 193.68 | 6.35 | 8.74 | |
| 8 | 200 | 345 | 27 | 246 | 219.1 | 100 | 273 | 6.35 | 298.5 | 247.65 | 6.35 | 8.74 | |
| 10 | 250 | 405 | 28.6 | 305 | 273 | 100 | 330 | 6.35 | 362 | 304.8 | 6.35 | 8.74 | |
| 12 | 300 | 485 | 30.2 | 365 | 323.8 | 113 | 406 | 6.35 | 431.8 | 381 | 6.35 | 8.74 | |
| 14 | 350 | 535 | 33.4 | 400 | 355.6 | 125 | 425 | 6.35 | 476.3 | 396.88 | 6.35 | 8.74 | |
| 16 | 400 | 595 | 35 | 457 | 406.4 | 125 | 483 | 6.35 | 539.8 | 454.03 | 6.35 | 8.74 | |
| 18 | 450 | 635 | 38.1 | 505 | 457.2 | 138 | 546 | 6.35 | 577.9 | 517.53 | 6.35 | 8.74 | |
| 20 | 500 | 700 | 41.3 | 559 | 508 | 143 | 597 | 6.35 | 635 | 558.8 | 6.35 | 8.74 | |
| 24 | 600 | 815 | 46.1 | 663 | 610 | 151 | 711 | 6.35 | 749.3 | 673.1 | 6.35 | 8.74 |
| Price List | |
| Ring Type Joint Flanges | US / Metric Ton (FOB Price) on request |
| Ring Type Joint Flanges | US / Metric Ton (FOB Price) on request |
| Ring Type Joint Flanges | US / Metric Ton (FOB Price) on request |
| Ring Type Joint Flanges | US / Metric Ton (FOB Price) on request |
| Preview | Products | UNS | DIN |
|---|---|---|---|
 |
Stainless Steel Ring Type Joint Flanges | UNS S30400, S30403, S31600, S31603 Ring Type Joint Flanges | 1.4301, 1.4306, 1.4401, 1.4404 Ring Type Joint Flanges |
 |
Duplex / Super Duplex Steel Ring Type Joint Flanges | UNS S31803, S32205, SAF-2205, S32750, S32760, SAF-2507 Ring Type Joint Flanges | 1.4462, 1.4410 Ring Type Joint Flanges |
 |
Copper Nickel Ring Type Joint Flanges | UNS C70600, C71500 Ring Type Joint Flanges | 2.0872, 2.0882 Ring Type Joint Flanges |
 |
Alloy Steel Ring Type Joint Flanges | UNS K41545, K90941, K11597, K21590 Ring Type Joint Flanges | 1.7362, 1.7386, 1.7335, 1.7380 Ring Type Joint Flanges |
| American Steel Ring Type Joint Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SA-182 | Ring Type Joint Flanges |
| ANSI ASME B16.5 | Ring Type Joint Flanges , sortj, soff, rfso flange |
| ASME – B 16.36 | Ring Type Joint Flanges |
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
- Petrochemical Industries
We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Positive Material Recognition
- Pitting Protection Test
We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapped
- Carton Boxes
- Wooden Boxes
