| Specifications | : | ASME B16.5 Blind Flanges |
| Size | : | 1/2"NB TO 24"NB IN |
| Flange Face Type | : | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Stainless Steel
- Stainless Steel 304 Blind Flanges
- SS 304L Raised Face Blind Flanges
- UNS S30400 Blind Flanges
High Nickel
- Inconel 600, 601 Raised Face Blind Flanges
- Nickel Alloy 200 Blind Flanges
- Titanium Grade 2 Blind Flanges
Carbon Steel
- UNS K03504 Blind Flanges
- LF3 Blind Flanges
- ASME B16.47 Carbon Steel Blind Flanges

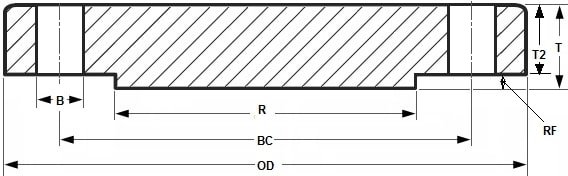

ASME B16.5 Blind Flanges Class 150
| SIZE | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | Raised Face Thickness (T) | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.50" | 2.38" | 1.38" | .063" | .44" | .38" | .62" | 4 |
| 3/4" | 3.88" | 2.75" | 1.69" | .063" | .50" | .44" | .62" | 4 |
| 1" | 4.25" | 3.12" | 2.00" | .063" | .56" | .50" | .62" | 4 |
| 1-1/4" | 4.62" | 3.50" | 2.50" | .063" | .62" | .56" | .62" | 4 |
| 1-1/2" | 5.00" | 3.88" | 2.88" | .063" | .68" | .62" | .62" | 4 |
| 2" | 6.00" | 4.75" | 3.62" | .063" | .75" | .69" | .75" | 4 |
| 2-1/2" | 7.00" | 5.50" | 4.12" | .063" | .88" | .82" | .75" | 4 |
| 3" | 7.50" | 6.00" | 5.00" | .063" | .94" | .88" | .75" | 4 |
| 3-1/2" | 8.50" | 7.00" | 5.50" | .063" | .94" | .88" | .75" | 8 |
| 4" | 9.00" | 7.50" | 6.19" | .063" | .94" | .88" | .75" | 8 |
| 5" | 10.00" | 8.50" | 7.31" | .063" | .94" | .88" | .88" | 8 |
| 6" | 11.00" | 9.50" | 8.50" | .063" | 1.00" | .94" | .88" | 8 |
| 8" | 13.50" | 11.75" | 10.62" | .063" | 1.12" | 1.06" | .88" | 8 |
| 10" | 16.00" | 14.25" | 12.75" | .063" | 1.19" | 1.13" | 1.00" | 12 |
| 12" | 19.00" | 17.00" | 15.00" | .063" | 1.25" | 1.19" | 1.00" | 12 |
| 14" | 21.00" | 18.75" | 16.25" | .063" | 1.38" | 1.32" | 1.12" | 12 |
| 16" | 23.50" | 21.25" | 18.50" | .063" | 1.44" | 1.38" | 1.12" | 16 |
| 18" | 25.00" | 22.75" | 21.00" | .063" | 1.56" | 1.50" | 1.25" | 16 |
| 20" | 27.50" | 25.00" | 23.00" | .063" | 1.69" | 1.63" | 1.25" | 20 |
| 22" | 29.50" | 27.25" | 25.25" | .063" | 1.81" | 1.75" | 1.38" | 20 |
| 24" | 32.00" | 29.50" | 27.25" | .063" | 1.88" | 1.82" | 1.38" | 20 |
ASME B16.5 Blind Flanges Class 300
| SIZE | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | Raised Face Thickness (T) | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.75" | 2.62" | 1.38" | .063" | 0.56" | 0.50" | 0.62" | 4 |
| 3/4" | 4.62" | 3.25" | 1.69" | .063" | 0.62" | .056" | 0.75" | 4 |
| 1" | 4.88" | 3.50" | 2.00" | .063" | 0.69" | 0.63" | 0.75" | 4 |
| 1-1/4" | 5.25" | 3.88" | 2.50" | .063" | 0.75" | 0.69" | 0.75" | 4 |
| 1-1/2" | 6.12" | 4.50" | 2.88" | .063" | 0.81" | 0.75" | 0.88" | 4 |
| 2" | 6.50" | 5.00" | 3.62" | .063" | 0.88" | 0.82" | 0.75" | 8 |
| 2-1/2" | 7.50" | 5.88" | 4.12" | .063" | 1.00" | 0.94" | 0.88" | 8 |
| 3" | 8.25" | 6.62" | 5.00" | .063" | 1.12" | 1.06" | 0.88" | 8 |
| 3-1/2" | 9.00" | 7.25" | 5.50" | .063" | 1.19" | 1.13" | 0.88" | 8 |
| 4" | 10.00" | 7.88" | 6.19" | .063" | 1.25" | 1.19" | 0.88" | 8 |
| 5" | 11.00" | 9.25" | 7.31" | .063" | 1.38" | 1.32" | 0.88" | 8 |
| 6" | 12.50" | 10.62" | 8.50" | .063" | 1.44" | 1.38" | 0.88" | 12 |
| 8" | 15.00" | 13.00" | 10.62" | .063" | 1.62" | 1.56" | 1.00" | 12 |
| 10" | 17.50" | 15.25" | 12.75" | .063" | 1.88" | 1.82" | 1.12" | 16 |
| 12" | 20.50" | 17.75" | 15.00" | .063" | 2.00" | 1.94" | 1.25" | 16 |
| 14" | 23.00" | 20.25" | 16.25" | .063" | 2.12" | 2.06" | 1.25" | 20 |
| 16" | 25.50" | 22.50" | 18.50" | .063" | 2.25" | 2.19" | 1.38" | 20 |
| 18" | 28.00" | 24.75" | 21.00" | .063" | 2.38" | 2.32" | 1.38" | 24 |
| 20" | 30.50" | 27.00" | 23.00" | .063" | 2.50" | 2.44" | 1.38" | 24 |
| 22" | 33.00" | 29.25" | 25.25" | .063" | 2.63" | 2.57" | 1.63" | 24 |
| 24" | 36.00" | 32.00" | 27.25" | .063" | 2.75" | 2.69" | 1.62" | 24 |
ASME B16.5 Blind Flanges Class 600
| SIZE | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | Raised Face Thickness (T) | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.75" | 2.62" | 1.38" | .250" | 0.81" | 0.56" | 0.62" | 4 |
| 3/4" | 4.62" | 3.25" | 1.69" | .250" | 0.87" | 0.62" | 0.75" | 4 |
| 1" | 4.88" | 3.50" | 2.00" | .250" | 0.94" | 0.69" | 0.75" | 4 |
| 1-1/4" | 5.25" | 3.88" | 2.50" | .250" | 1.06" | 0.81" | 0.75" | 4 |
| 1-1/2" | 6.12" | 4.50" | 2.88" | .250" | 1.13" | 0.88" | 0.88" | 4 |
| 2" | 6.50" | 5.00" | 3.62" | .250" | 1.25" | 1.00" | 0.75" | 8 |
| 2-1/2" | 7.50" | 5.88" | 4.12" | .250" | 1.37" | 1.12" | 0.88" | 8 |
| 3" | 8.25" | 6.62" | 5.00" | .250" | 1.50" | 1.25" | 0.88" | 8 |
| 3-1/2" | 9.00" | 7.25" | 5.50" | .250" | 1.63" | 1.38" | 1.00" | 8 |
| 4" | 10.75" | 8.50" | 6.19" | .250" | 1.75" | 1.5" | 1.00" | 8 |
| 5" | 13.00" | 10.50" | 7.31" | .250" | 2.00" | 1.75" | 1.12" | 8 |
| 6" | 14.00" | 11.50" | 8.50" | .250" | 2.13" | 1.88" | 1.12" | 12 |
| 8" | 16.50" | 13.75" | 10.62" | .250" | 2.44" | 2.19" | 1.25" | 12 |
| 10" | 20.00" | 17.00" | 12.75" | .250" | 2.75" | 2.50" | 1.38" | 16 |
| 12" | 22.00" | 19.25" | 15.00" | .250" | 2.87" | 2.62" | 1.38" | 20 |
| 14" | 23.75" | 20.75" | 16.25" | .250" | 3.00" | 2.75" | 1.50" | 20 |
| 16" | 27.00" | 23.75" | 18.50" | .250" | 3.25" | 3.00" | 1.62" | 20 |
| 18" | 29.25" | 25.75" | 21.00" | .250" | 3.50" | 3.25" | 1.75" | 20 |
| 20" | 32.00" | 28.50" | 23.00" | .250" | 3.75" | 3.50" | 1.75" | 24 |
| 22" | 34.25" | 30.63" | 25.25" | .250" | 4.00" | 3.75" | 1.75" | 24 |
| 24" | 37.00" | 33.00" | 27.25" | .250" | 4.25" | 4.00" | 2.00" | 24 |
ASME B16.5 Blind Flanges Class 900
| NOM PIPE SIZE | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | Raised Face Thickness (T) | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|
| 3" | 9.50" | 7.50" | 5.00" | .250" | 1.75" | 1.50" | 1.00" | 8 |
| 4" | 11.50" | 9.25" | 6.19" | .250" | 2.00" | 1.75" | 1.25" | 8 |
| 5" | 13.75" | 11.00" | 7.31" | .250" | 3.25" | 3.00" | 1.38" | 8 |
| 6" | 15.00" | 12.50" | 8.50" | .250" | 2.44" | 2.19" | 1.25" | 12 |
| 8" | 18.50" | 15.50" | 10.63" | .250" | 2.75" | 2.50" | 1.50" | 12 |
| 10" | 21.50" | 18.50" | 12.75" | .250" | 3.00" | 2.75" | 1.50" | 16 |
| 12" | 24.00" | 21.00" | 15.00" | .250" | 3.38" | 3.13" | 1.50" | 20 |
| 14" | 25.25" | 22.00" | 16.25" | .250" | 3.63" | 3.38" | 1.63" | 20 |
| 16" | 27.75" | 24.25" | 18.50" | .250" | 3.75" | 3.50" | 1.75" | 20 |
| 18" | 31.00" | 27.00" | 21.00" | .250" | 4.25" | 4.00" | 2.00" | 20 |
| 20" | 33.75" | 29.50" | 23.00" | .250" | 4.50" | 4.25" | 2.13" | 20 |
| 24" | 41.00" | 35.50" | 27.25" | .250" | 5.75" | 5.50" | 2.63" | 20 |
ASME B16.5 Blind Flanges Class 1500
| NOM PIPE SIZE | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | Raised Face Thickness (T) | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 4.75" | 3.25" | 1.38" | .250" | 1.13" | 0.88" | 0.88" | 4 |
| 3/4" | 5.13" | 3.50" | 1.69" | .250" | 1.25" | 1.00" | 0.88" | 4 |
| 1" | 5.88" | 4.00" | 2.00" | .250" | 1.38" | 1.13" | 1.00" | 4 |
| 1-1/4" | 6.25" | 4.38" | 2.50" | .250" | 1.38" | 1.13" | 1.00" | 4 |
| 1-1/2" | 7.00" | 4.88" | 2.88" | .250" | 1.50" | 1.25" | 1.13" | 4 |
| 2" | 8.50" | 6.50" | 3.63" | .250" | 1.75" | 1.50" | 1.00" | 8 |
| 2-1/2" | 9.63" | 7.50" | 4.13" | .250" | 1.88" | 1.63" | 1.13" | 8 |
| 3" | 10.50" | 8.00" | 5.00" | .250" | 2.13" | 1.88" | 1.25" | 8 |
| 4" | 12.25" | 9.50" | 6.19" | .250" | 2.38" | 2.13" | 1.38" | 8 |
| 5" | 14.75" | 11.50" | 7.31" | .250" | 3.13" | 2.88" | 1.63" | 8 |
| 6" | 15.50" | 12.50" | 8.50" | .250" | 3.50" | 3.25" | 1.50" | 12 |
| 8" | 19.00" | 15.50" | 10.63" | .250" | 3.88" | 3.63" | 1.75" | 12 |
| 10" | 23.00" | 19.00" | 12.75" | .250" | 4.50" | 4.25" | 2.00" | 12 |
| 12" | 26.50" | 22.50" | 15.00" | .250" | 5.13" | 4.88" | 2.13" | 16 |
| 14" | 29.50" | 25.00" | 16.25" | .250" | 5.50" | 5.25" | 2.38" | 16 |
| 16" | 32.50" | 27.75" | 18.50" | .250" | 6.00" | 5.75" | 2.63" | 16 |
| 18" | 36.00" | 30.50" | 21.00" | .250" | 6.63" | 6.38" | 2.88" | 16 |
| 20" | 38.75" | 32.75" | 23.00" | .250" | 7.25" | 7.00" | 3.13" | 16 |
| 24" | 46.00" | 39.00" | 27.25" | .250" | 8.25" | 8.00" | 3.63" | 16 |
ASME B16.5 Blind Flanges Class 2500
| NOM PIPE SIZE | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | Raised Face Thickness (T) | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 5.25" | 3.50" | 1.38" | .250" | 1.44" | 1.19" | 0.88" | 4 |
| 3/4" | 5.50" | 3.75" | 1.69" | .250" | 1.50" | 1.25" | 0.88" | 4 |
| 1" | 6.25" | 4.25" | 2.00" | .250" | 1.63" | 1.38" | 1.00" | 4 |
| 1-1/4" | 7.25" | 5.13" | 2.50" | .250" | 1.75" | 1.50" | 1.13" | 4 |
| 1-1/2" | 8.00" | 5.75" | 2.88" | .250" | 2.00" | 1.75" | 1.25" | 4 |
| 2" | 9.25" | 6.75" | 3.63" | .250" | 2.25" | 2.00" | 1.13" | 8 |
| 2-1/2" | 10.50" | 7.75" | 4.13" | .250" | 2.50" | 2.25" | 1.25" | 8 |
| 3" | 12.00" | 9.00" | 5.00" | .250" | 2.88" | 2.63" | 1.38" | 8 |
| 4" | 14.00" | 10.75" | 6.19" | .250" | 3.25" | 3.00" | 1.63" | 8 |
| 5" | 16.50" | 12.75" | 7.31" | .250" | 3.88" | 3.63" | 1.88" | 8 |
| 6" | 19.00" | 14.50" | 8.50" | .250" | 4.50" | 4.25" | 2.13" | 8 |
| 8" | 21.75" | 17.25" | 10.63" | .250" | 5.25" | 5.00" | 2.13" | 12 |
| 10" | 26.50" | 21.25" | 12.75" | .250" | 6.75" | 6.50" | 2.63" | 12 |
| 12" | 30.00" | 24.38" | 15.00" | .250" | 7.50" | 7.25" | 2.88" | 12 |
| Price List | |
| B16.5-Blind-150lb-300lb-600lb-900lb-1500lb-2500lb Blind Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Blind-150lb-300lb-600lb-900lb-1500lb-2500lb Blind Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Blind-150lb-300lb-600lb-900lb-1500lb-2500lb Blind Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Blind-150lb-300lb-600lb-900lb-1500lb-2500lb Blind Flanges | US / Metric Ton (FOB Price) on request |
| Preview | Products | UNS | DIN |
|---|---|---|---|
 |
Stainless Steel Blind Flanges | UNS S30400, S30403, S31600, S31603 Blind Flanges | 1.4301, 1.4306, 1.4401, 1.4404 Blind Flanges |
 |
Duplex / Super Duplex Steel Blind Flanges | UNS S31803, S32205, SAF-2205, S32750, S32760, SAF-2507 Blind Flanges | 1.4462, 1.4410 Blind Flanges |
 |
Copper Nickel Blind Flanges | UNS C70600, C71500 Blind Flanges | 2.0872, 2.0882 Blind Flanges |
 |
Alloy Steel Blind Flanges | UNS K41545, K90941, K11597, K21590 Blind Flanges | 1.7362, 1.7386, 1.7335, 1.7380 Blind Flanges |
| American Steel Blind Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SA-182 | Blind Flanges |
| ANSI ASME B16.5 | Blind Flanges , sortj, soff, rfso flange |
| ASME – B 16.36 | Blind Flanges |
